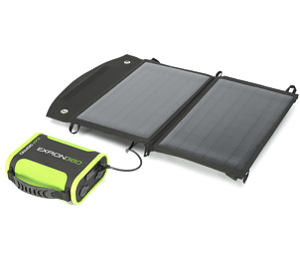

EXP96 Pro Lithium Ion Battery + Portable Solar Panel Bundle

Expion360 30W Portable Solar Panel

Dimensions Outside of Box: 19" x 11" x 2"

Weight: 3.3 lbs

Materials Used: Monocrystalline Silicon

Does it Have Latex? no

Warranty: 2 years

Warning: Keep away from extreme heat or heavy objects placed on top of the panels.

EXP96 Pro Lithium Ion Battery Bank

Dimensions: 8.2 in L x 6 in W x 1.6 in H

Weight: 6.5 pounds

Rated Nights: 4-6

Capacity: 307.2 Watt Hours/ 25.6 Amp Hours @12 Volts

Power Ports: 15 Amps Max

USB Ports: 2 Standard USB Ports, 1 USB Type-C

Charge Time: 4-6 Hours

Type: Lithium Iron Phosphate

DC Input: 12-24V/2A

TYPE-C input: DC5V/3A 9V/3A 15V/3A 20V/2.5A

TYPE-C out: DC5V/3A 9V/3A 12V/3A 15V/3A 20.3V/3A

USB out 2: DC3.6-6.5V/3A 6.5-9V/2A 9-12V/1.5A

USB Out 1: DC5V/2.4A

Cigar Lighter Out: DC12V/15A

Warranty: 2 years

Compatibility: To use this battery, your CPAP machine needs to meet two important criteria:

• It must be DC capable
• It must have a DC cable

Luckily, most of the popular machines are DC capable, and many include a DC cable. The AirSense, AirStart, AirCurve, AirMini, DreamStation Auto, Z2, Z1, IntelliPAP, and Transcend Machines are all DC compatible and are compatible with this battery.

One notable exception is the DreamStation Go, which is not compatible with the EXP96 Pro. While it is DC capable, it does not have the DC cable needed to connect to the battery bank.

Warnings:

• Only use the supplied AC and DC charge cord to charge the battery bank. Use of a different charge cord other than the two supplied may damage the battery bank.
• Never connect the input charge port and the round main output power port with the provided DC charge cord on the same battery bank. Doing so may damage the battery.
• Never leave the battery bank unattended for long periods while charging. When charging is complete, disconnect the battery bank charge cord from the charge source.
• For best results, use the DC power cord specific to the individual PAP machine being powered (sold separately). Do not use the AC or DC charge cords (included) to power a PAP machine or other appliance. This may damage the PAP machine, appliance, or the battery bank.
• Do not charge below 32°F. Optimum ambient charge temperature is 40°F - 110°F. F. Do not charge the battery bank if the charge cord or battery bank has obvious damage or if the battery bank appears to be bulging. A bulging battery bank is a potential sign of damaged lithium cells.
• Do not charge the battery bank if it feels excessively hot. The battery bank should not reach more than 120°F while charging or discharging and should not feel hotter than a warm cup of coffee to the touch.

How to Clean the Expion360 30W Folding Solar Panel

Gently clean using dish soap and water with a soft cloth.

Power Your CPAP Machine Using Your Device's DC Charging Cable

Most CPAP machines include a DC charging cable that makes it possible to power the CPAP machine from your car's battery. You'll need this DC charging cable to connect your CPAP machine to the EXP96 Pro.

To connect your CPAP machine to the EXP96 Pro, you'll need to follow these steps:

1. Connect the lighter plug adapter end of the cable into the EXP96 Pro.
2. Connect the other end of the cable into your CPAP machine. The battery should begin providing power to your CPAP automatically.

How to Charge the EXP96 Pro

1. Plug the charging cable into the charge input port and the other end into the power source.
2. Charging will begin automatically.

Get the Most Out of Your EXP96 Battery

To get the most run time from your EXP96 battery bank, we recommend turning off all additional features such as humidity and your heated hose if possible. These features use a large amount of power and will draw more energy from the battery bank. PAP machine nightly run times for the EXP96 PRO are figured using the average night sleep in the US of seven hours and with the additional features mentioned above turned off.

Power requirements will vary greatly from one PAP machine to the next and with different prescribed pressure settings. We recommend you test your PAP machine with the battery bank before use, depending on it for emergency or off-grid power.
