Headgear for Eson™ 2 Nasal CPAP Mask

Headgear Assembly & Disassembly Tips

The headgear and headgear clips are easily removed and assembled.

1. Place the grey headgear straps through the headgear clips and close the connection by applying the hook and loop fastener to the strap.
2. Thread the pale blue straps through the back of the forehead support's slim opening.
3. Wrap the strap over the opening so the hook and loop closure falls onto the strap for easy closure.

Cleaning Tips

The manufacturer suggests the Eson 2 headgear be washed in lukewarm water with mild soap for no more than 10 minutes each time. When rinsing the headgear, ensure all soap residue is gone. Then, set the headgear away from direct sunlight and allow it to air dry completely.

How to Find the Best Fit?

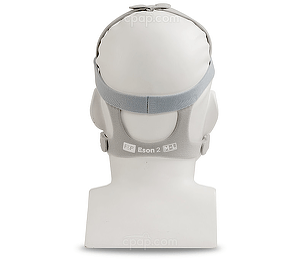

With one hand, hold the mask in place over the face. With the other hand, lift, pull, and place the hook and loop fastener on the blue straps until the perfect amount of tension is felt. Repeat this step with the lower, grey straps found on either side of the mask frame.

If further adjustments are needed, lift the two hook and loop closures found on the crown of the head and slide the material through the opening to increase or decrease tension. Note: The blue headgear straps need to lie above the ears when resting on the forehead.
